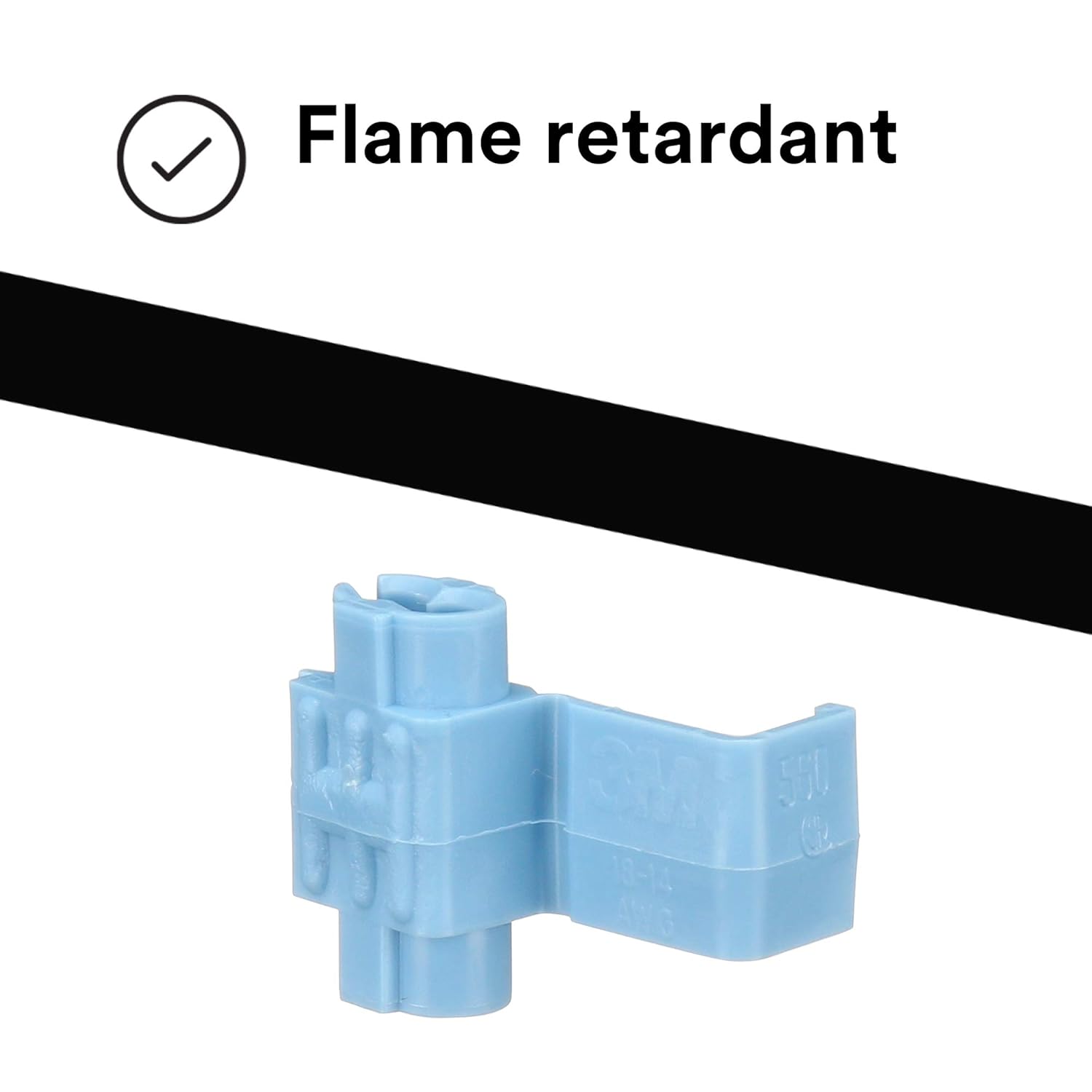

3M Electrical IDC 560-BULK, Double Run or Tap, Flame Retardant, Light Blue, 18–16 AWG (Solid/Stranded), 14 AWG (Stranded), (Pack of 500)
Product details
| Management number | 208223693 | Release Date | 2026/03/22 | List Price | $38.19 | Model Number | 208223693 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
3M™ Scotchlok™ Electrical IDC 560-BULK lets you electrically connect a (tap) wire end to a through (run) wire, join parallel run wires, and insulate the connection. Meant for use with thermoplastic insulated wires with a maximum insulation diameter of .145 inches (3.7 mm). The maximum recommended current for general purpose applications is 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps. They are capable of connecting a tap wire to a run wire in the range of 18-14 AWG (0.75-1.5 mm2) solid or stranded, with tinned or untinned copper conductors. These connectors are UL Listed and tested per UL Standard 486C (UL File No. E23438). 3M™ Scotchlok™ Electrical IDC 560-BULK is also CSA Certified (CSA Standard C22.2 No. 0, 188-M1983 CSA File No. LR15503).
- TAP RUN CONNECTOR: Used to electrically connect a (tap) wire end to a through (run) wire and insulate the connection.
- UL LISTED: UL Listed, UL File No. E23438.
- TESTED: Tested Per UL Standard 486C.
- CSA CERTIFIED: CSA Standard C22.2 No. 0, 188-M1983 CSA File No. LR15503.
- For industrial/occupational use only. Not for consumer sale or use.
| Manufacturer | 3M |
|---|---|
| Item model number | 80610031058 |
| Product Dimensions | 16.46 x 12.13 x 10.7 inches; 1.38 Pounds |
