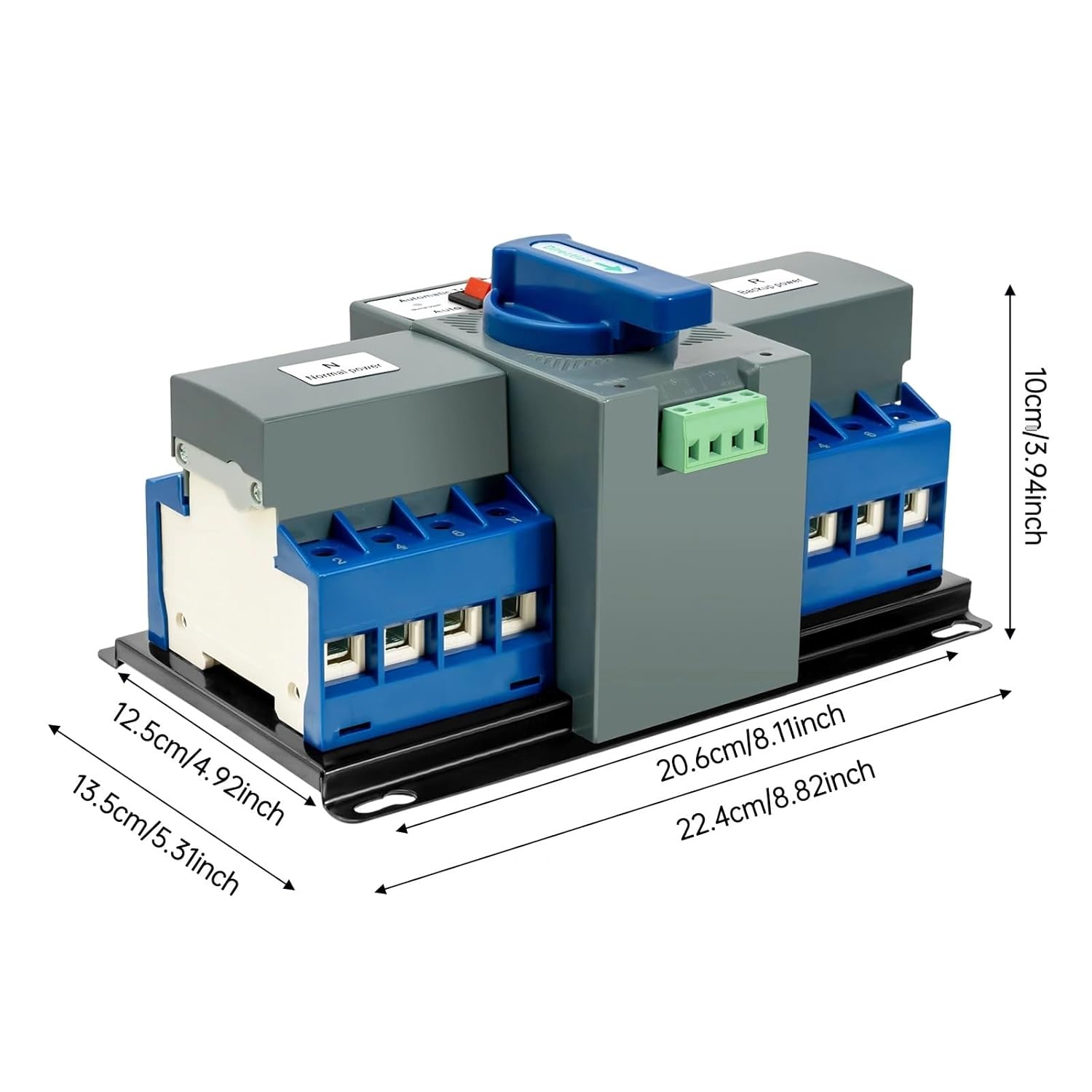

63A 4P ATS Dual Power Automatic Transfer Switch, Generator Changeover Switch 110V CB Level 4 Poles
Product details
| Management number | 210751725 | Release Date | 2026/04/02 | List Price | $49.78 | Model Number | 210751725 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Transfer SwitchesSpecificationAssembly Required: No Style: ModernShape: RectangularColor: Blue, GrayMaterial: Plastic, Pure Copper, CopperRated Current: 63ABore: M6 (6mm/0.24in)ATS Level: CB LevelUsed Level: AC-33iBConversion Mode: Automatic Transfer and Self-RecoveryDisplay Function: Indicator Light DisplayInstallation Type: Wall Mount (Horizontal or Vertical)Operating Voltage: AC110VRated Voltage: AC240VLine Current: 6A-63AWorking Frequency: 50HZ/60HZInsulation Voltage: AC690VConversion Time: About 2SContact Type: Edged Output ContactsCircuit Type: BidirectionalActuator Type: Ring CrossNumber of Poles: 4Mounting Hole Distance: 20.6cm/8.11 inBase Width: 12.5cm/ 4.92 inProduct Size: 22.4*13.5*10cm/8.82*5.31*3.94inPackage Size: 23*14.5*13cm/9.06*5.71*5.12inGross Weight: 1.85kg/4.08lbsNet Weight: 1.76kg/3.88lbsPackage Included1* Dual Power Automatic Transfer SwitchNotes1.Please check the style and size before purchasing.2.Please read the instruction manual completely before installation and use, and pay particular attention to the safety instructions included.3.Please note that the power supply is cut off when the voltage is switched in both directions.4.Please note that the switch cannot turn the generator on or off.5.When both normal and standby power are supplied at the same time, the switch will give priority to the normal power.6.Please turn the handle in the direction of the arrow. Please do not use the handle in automatic control.7.Please do not install the switch with leakage protection on the upper end to avoid tripping. If necessary, install it on the lower end.8.This product cannot be mounted on a rail. General household distribution boxes are too small for concealed distribution boxes.9.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.==========High-concerned chemical : NoneType : MiniOrigin :
- Transfer Switches
- 63A 4P ATS Dual Power Automatic Transfer Switch, Generator Changeover Switch 110V CB Level 4 Poles
| Color | 4 |
|---|---|
| Terminal | Blade |
| Brand Name | QEJWWGFI |
| Switch Type | Bipolar Transistor |
| Circuit Type | 1-way |
| Contact Type | Normally Closed |
| Manufacturer | QEJWWGFI |
| Material Type | Acrylonitrile Butadiene Styrene |
| Mounting Type | DIN Rail Mount |
| Connector Type | Clamp |
| Current Rating | 0.01 Amps |
| Operation Mode | OFF-NONE-ON |
| Item Dimensions | 0.39 x 0.39 x 0.39 inches |
| Number of Items | 1 |
| Contact Material | Alloy Steel |
| Operating Voltage | 1 Kilovolts |
| Specification Met | UL |
| Number of Positions | 1 |
| Lower Temperature Rating | 1 Degrees Celsius |
| Upper Temperature Rating | 1 Degrees Celsius |
| International Protection Rating | IP00 |
